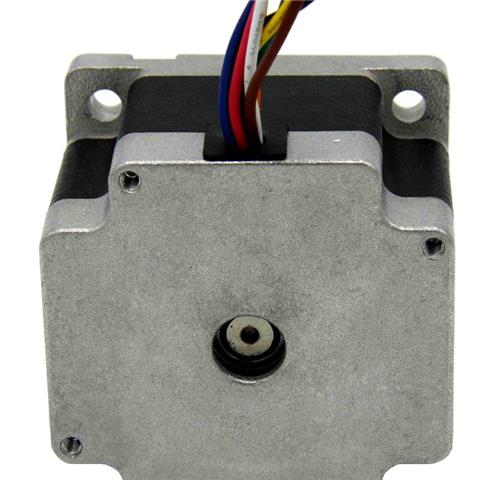

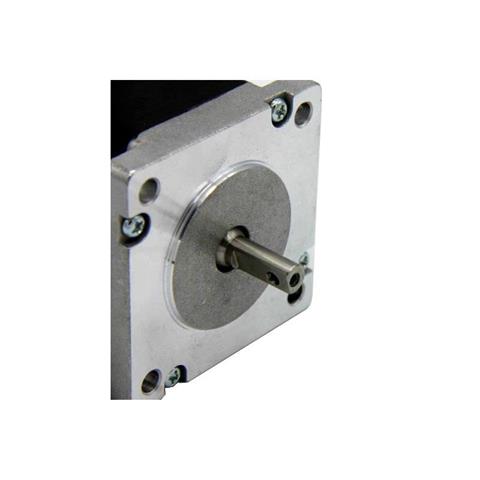

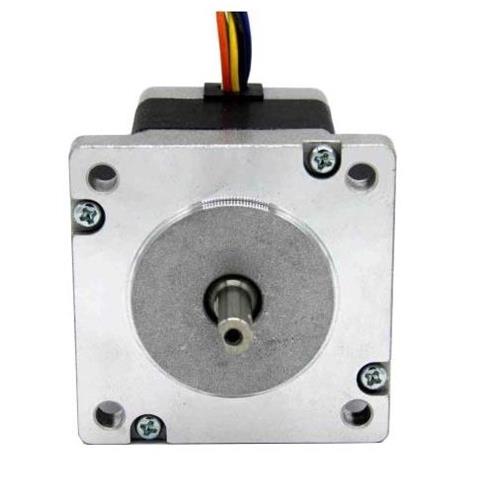

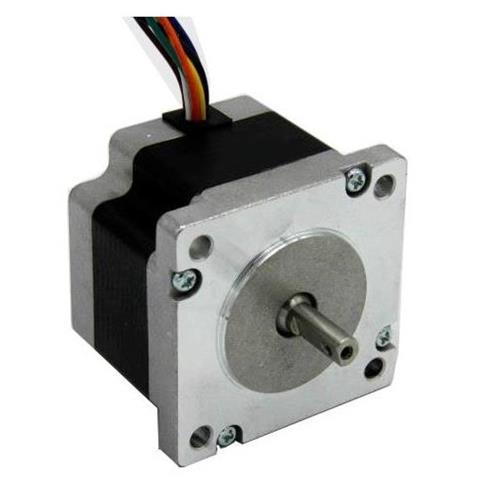

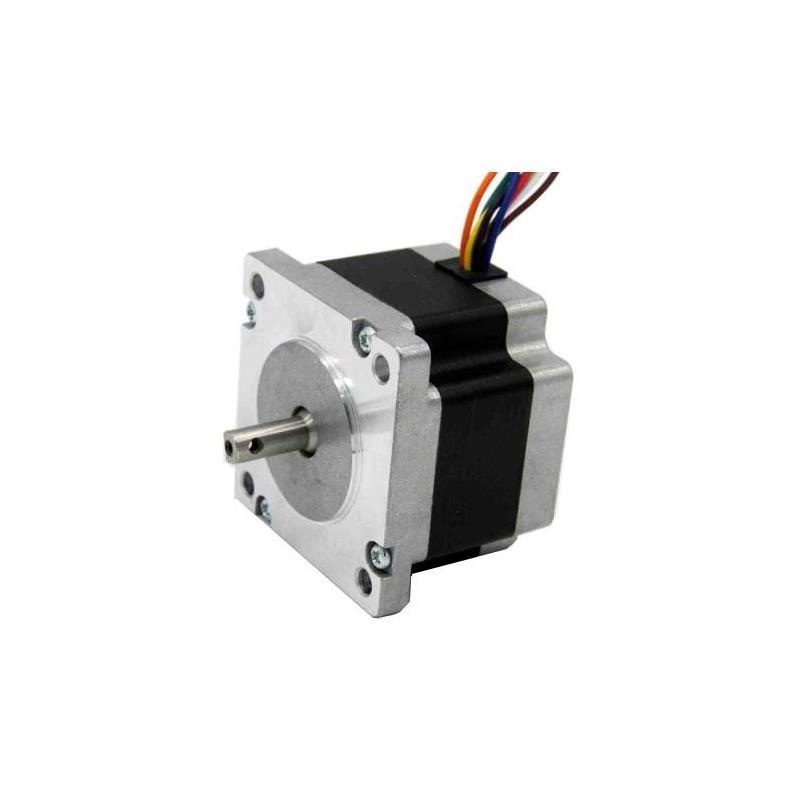

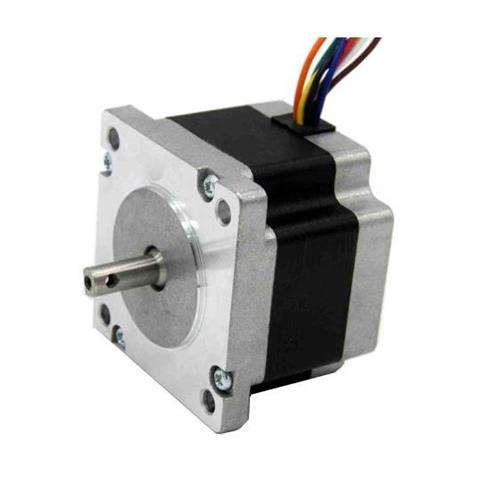

Model: 24HS4820D7
Phase:2
Step Angle: 1.8 deg
Frame Size: 60 x 60mm
Body Length: 45mm
Shaft Diameter: Φ7mm with flat ,with hole
Shaft Length: 18.6mm
Lead Length: 300mm
Weight: 0.73kg
|
|
Holding
Torque
Ncm
|
Rated
Current/Phase
A
|
Phase
Resistance
Ohms±10%
|
Phase
Inductance
mH
± 20%
|
|
Bipolar(Parallel)
|
80
|
3.0
|
0.7
|
1.4
|
|
Bipolar(Series)
|
80
|
1.4
|
2.8
|
5.6
|
|
Unipolar
|
55
|
2.1
|
1.4
|
1.4
|

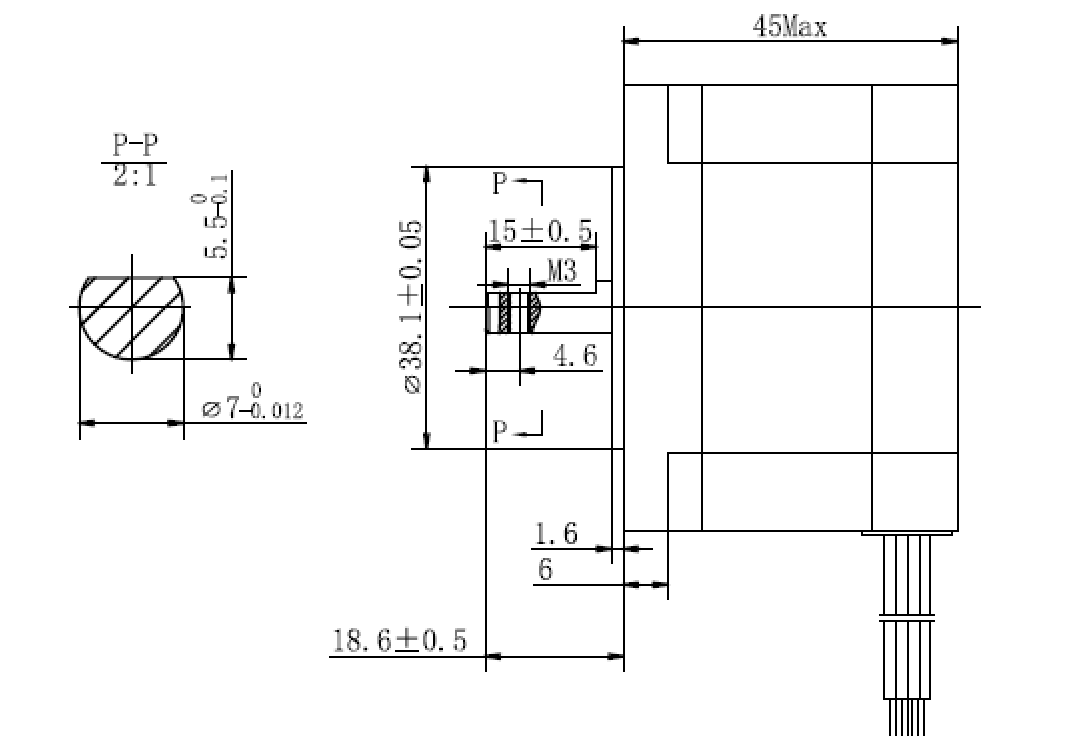

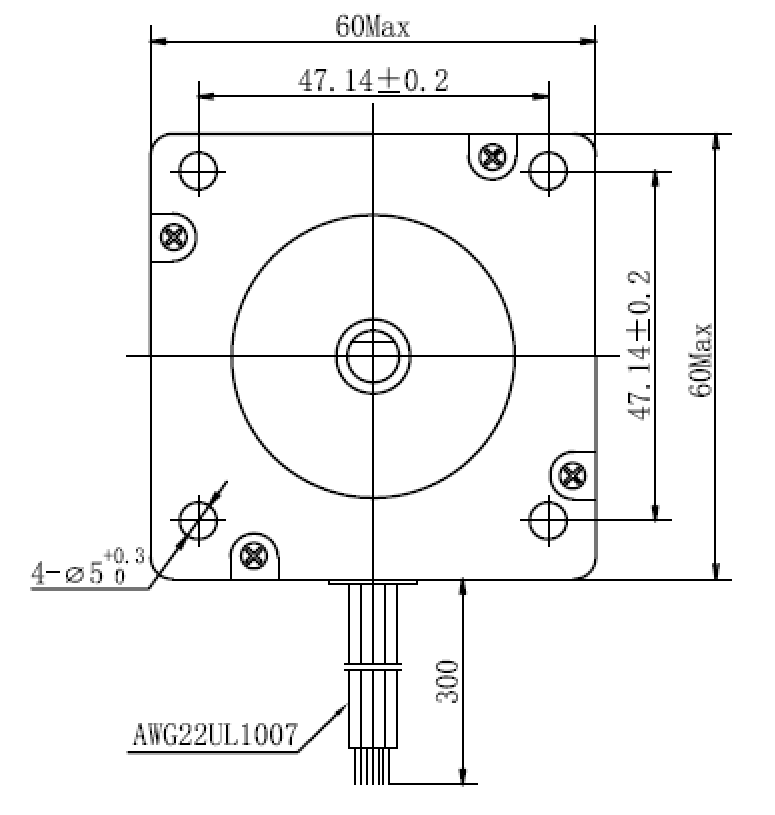

Mechanical Specification
Unit: mm
1 inch = 25.4 mm
Connection
we can customize products for our customers:
holding torque：motor body length
winding: rated current,resistance, inductance
shaft: round, D-cut,shaft length
lead wires:4 , 6 or 8
lead with connector
24HS4820D7 datasheet
