sysmotor> Home> 24IP2100-03-08
24IP2100-03-08

24IP2100-03-08

2 phase,1.8 deg,nema 24 ,rated current/phase 3.0A,holding torque 3.0Nm (425oz.in),single 8mm shaft with flat,4wires,,waterproof, IP65

Price$39.00

Number 0 In Stock

Price Break
Qty Price($)
1-10 39.00
11-20 38.50
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 24IP2100-03-08

Phase:2

Step Angle: 1.8 deg

Holding Torque: 3.0Nm(425oz.in)

Rated Current/phase: 3.0A

Voltage: 3.9V

Inductance: 5.4mH ± 20%(1KHz)

Phase Resistance: 1.3ohms

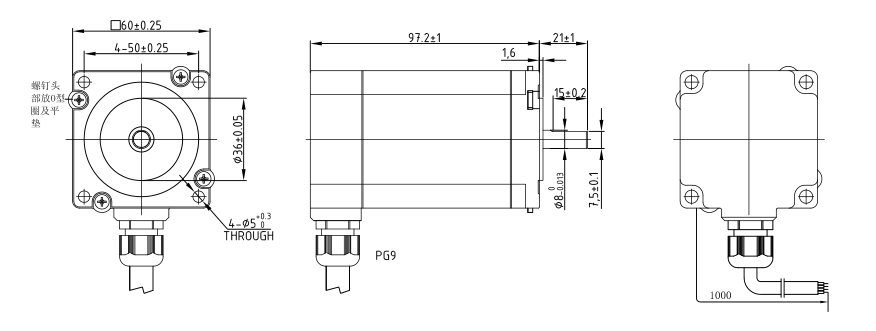

Frame Size: 60 x 60mm

Body Length: 97mm

Shaft Diameter: Φ8mm

Shaft Length: 21mm with 15mm flat

Number of Leads: 4

Lead Length: 1000mm
