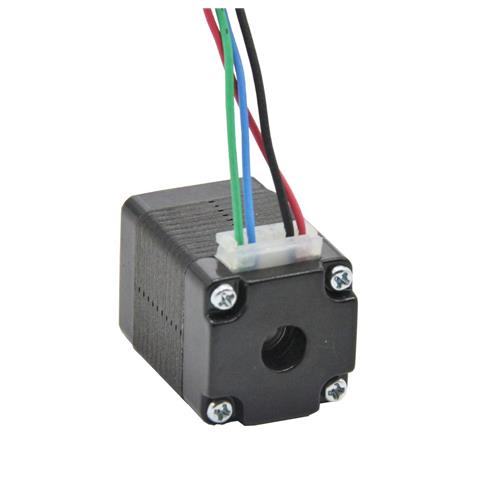

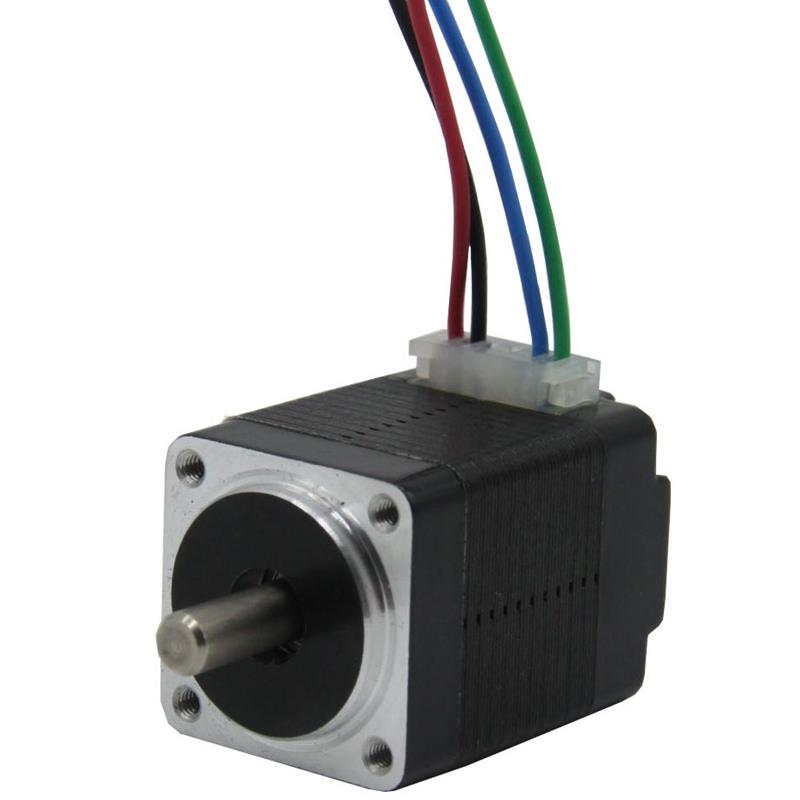

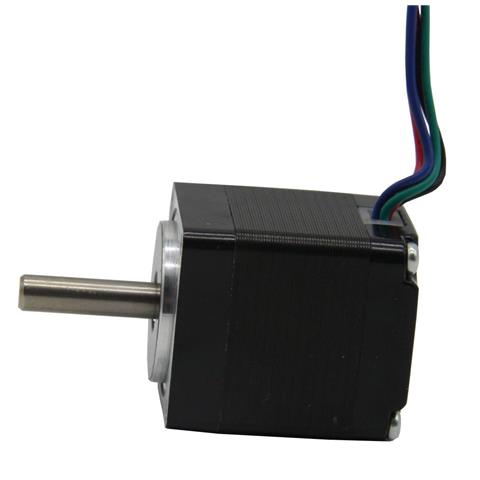

8HY2402-10

8HY2402-10

2 phase,1.8 degree,nema 8,size 20x20x28mm, rated current/phase 0.2A, holding torque 1.6Ncm (2.3oz.in),single shaft,4 wires

Price$11.50

Number 0 In Stock

Price Break
Qty Price($)
1-3 12.50
4-10 12.00
11-20 11.50
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 8HY2402-10

Phase:2

Step Angle: 1.8 deg

Holding Torque: 1.6Ncm(2.3oz.in)

Rated Current/phase: 0.2A

Voltage: 4.6V

Inductance: 7.2mH ± 20%(1KHz)

Phase Resistance: 23ohms

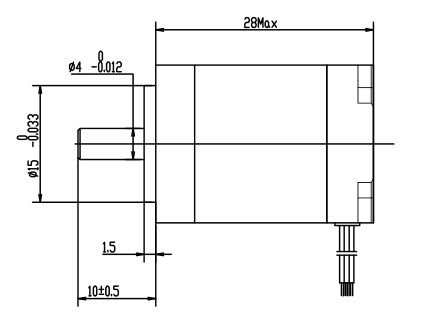

Frame Size: 20 x 20mm

Body Length: 28mm

Shaft Diameter: Φ4mm

Shaft Length: 10mm

Lead Length: 300mm


Tags: nema 8, 8HY2402-10, bipolar, 1.8deg, 0.2A,4.6V,1.6Ncm, (2.3oz.in),20x20x28mm, 4 ,wires,
