Introductions:

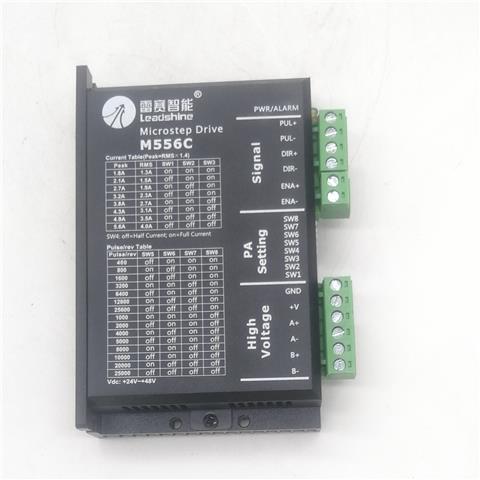

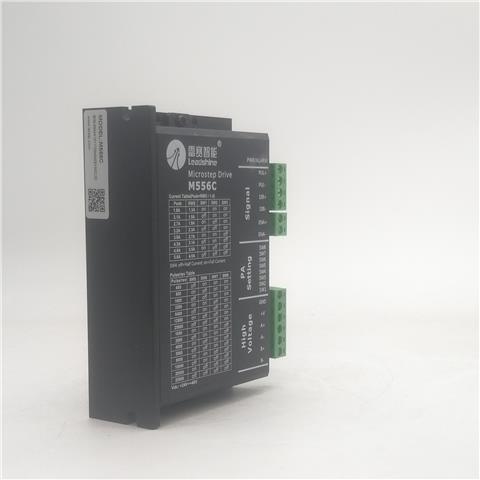

M556C stepper drives adopting Leadshine latest advanced stepper control technology. Those stepper drives are highly reliable with good performance and highly competitive cost. M542C stepper drives feature advanced DSP microstepping and anti-resonance technology for optimized torque, smooth motion, extra low noise, and very low motor heating. The feature of stepper motor auto identification & configuration will allow the driven stepper motors always running at the optimized performance.
M556C stepper drives are easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switch configuration.
M556C stepper drives are ideal for step & direction applications requiring step & direction 2 or 4 phase stepper motor control.
Features:
Step & direction or CW/CCW Control
Smooth motion, low motor heating, extra low noise & vibration
High reliability and extra low failure rate
Anti-resonance
Automatic stepper identification and configuration
Easy DIP switch configuration & simple setup
Idle current reduction
Electrical Specifications:
|
|
Min.
|
Typical
|
Max.
|
Unit
|
|
Input Voltage
|
20
|
36
|
50
|
VDC
|
|
Output Current (Peak)
|
1.7
|
-
|
5.6
|
A
|
|
Logic Signal Voltage
|
-
|
5
|
-
|
VDC
|
|
Logic Signal Current
|
7
|
-
|
16
|
A
|
|
Pulse Input Frequency
|
-
|
-
|
200
|
kHz
|
|
Over Voltage Protection
|
-
|
92
|
-
|
VDC
|
Tags:Digital ,Stepper, Driver, Stepper, Driver, for, Nema, 23, 34,, Stepper, Driver, M556C
Typical Configuration
Connector Specifications
(1) LED indicators
There are two LED indicators, one green and one red. Here are their definitions
|
LED Light Color
|
Function
|
Description
|
|
Green
|
Power Indicator
|
Solid green when powered on.
|
|
Red
|
Fault Indicator
|
No light when normal.
Blinks periodically in every 3 seconds when.
─ “Over Current protection”: blind one time periodically every 3 seconds
─ “Over Voltage protection”: blind one time periodically every 3 seconds
|
Control Signal Connections
|
Pin
|
Description
|
Remark
|
|
PUL
|
Pulse Input
|
5V pulse signal. A resistor is needed to 12 V or 24V signal
|
|
DIR
|
Direction Input
|
5V direction signal. A resistor is needed to 12 V or 24V signal
|
|
OPTO
|
5-24V opto-coupler power supply
|
|
|
ENA
|
Enable Signal
|
A 5V enable signal can be used to clear “Over Voltage” protection
|
(1) DIP Switch Settings
|
Model
|
SW1-SW3
|
SW4
|
SW5-SW6
|
SW7-SW8
|
|
M542C
/M556C
|
for
output current settings
|
for
idle current settings
|
for
micro step settings
|
(1) Motor Connections
|
A+
|
Connect to A+ wire of the driven stepper
motor
|
|
A-
|
Connect to A- wire of the driven stepper
motor
|
|
B+
|
Connect to B+ wire of the driven stepper
motor
|
|
B-
|
Connect to B- wire of the driven stepper
motor
|
Typical Connection Diagrams
Mechanical Specifications (unit: mm 1 inch = 25.4 mm)
