Features
● Step & direction (PUL/DIR) or CW/CCW (double pulse) control
● Suggested supply voltage 20-50 VDC, up to 74VDC
● 500KHz max pulse input frequency in dutycycle 50%
● 8 microstep resolutions of 200-10,000 via DIP switches, or 200-51,200 via software
● 16 output current settings of 2.1 -8.0A via DIP Switches, or 0.5-8.0A via software
● Configurable control command smoothing for reducing motor vibration

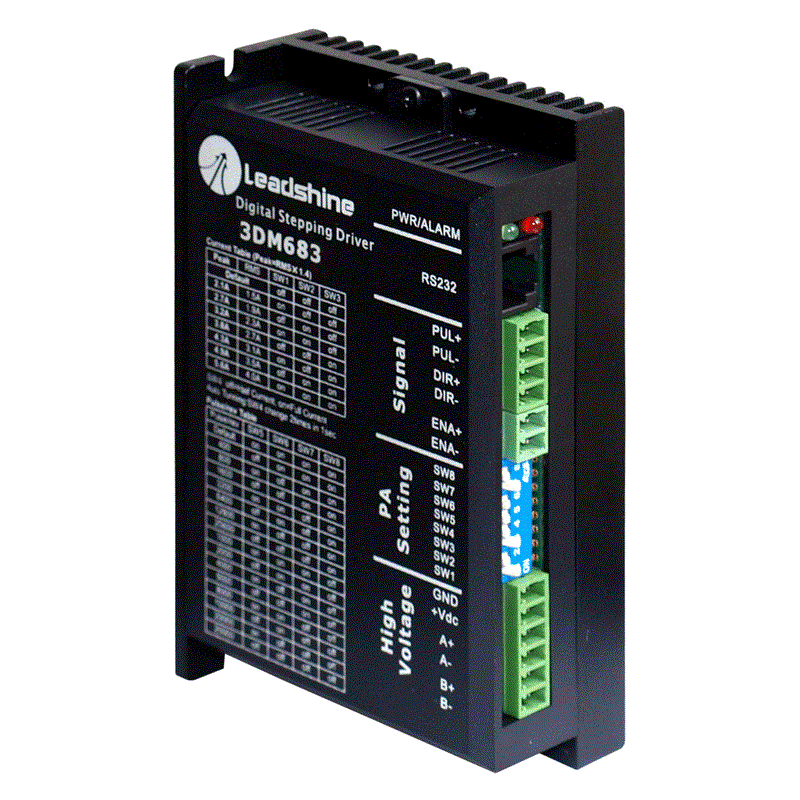

The DM series consists of stepper drives adopting Leadshine latest advanced stepper control technology. Those stepper drives are highly reliable with good performance and highly competitive cost. They can power a wide range of stepper motors from NEMA 8 to NEMA 34 (model dependent). DM stepper drives are easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switches.
