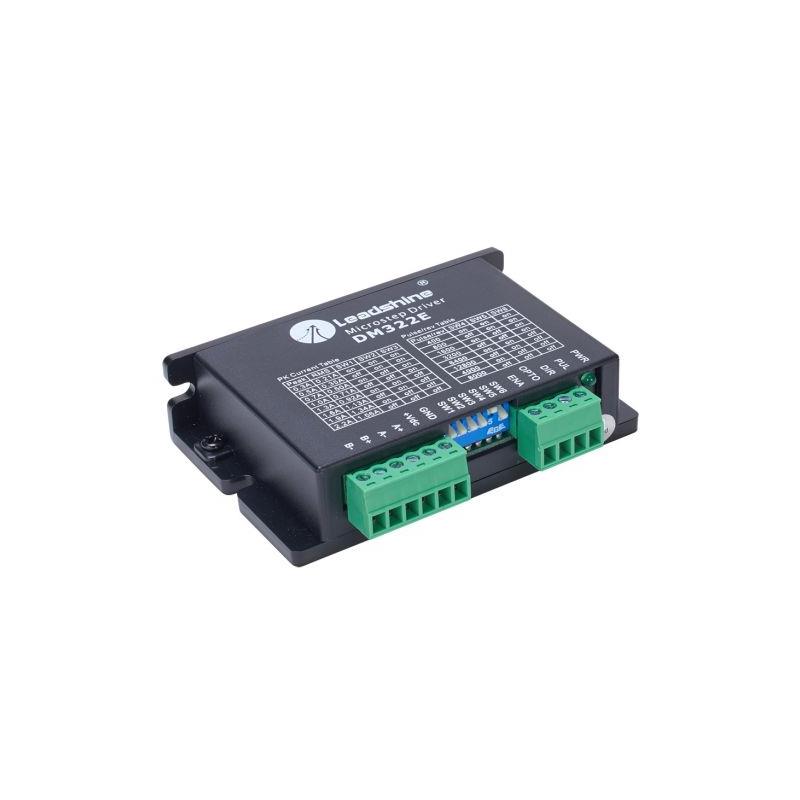

DM322E Leadshine

2 Phase Digital Stepper Drive; 12-30 VDC / 0.3-2.2A,for Nema 11, 14, 16, 17 Stepper Motor


Number 50 In Stock

Price Break
Qty Price($)
1-3 28.00
4-10 27.00
11-20 26.00
Contact us for qty 21 & up
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question
Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
Step & direction (PUL/DIR) control
Multi-Stepping for smooth motor movement
Optically isolated inputs
Input voltage 12-30VDC
8 selectable micro-step resolutions of 400-12800 via DIP switches
8 selectable output current settings of 0.3 – 2.2A via DIP switches
Soft-start with no “jump” when powered on
Pulse input frequency up to 70 KHz.
Automatic idle-current reduction
Protections for over-voltage and over-current
