sysmotor> Home> 23HS8804-02YEL

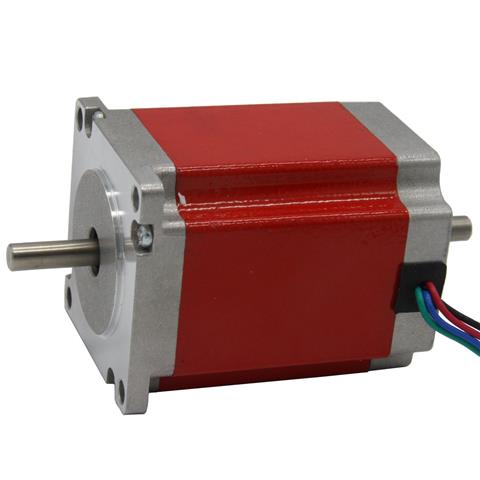

23HS8804-02YEL

23HS8804-02YEL

2 phase,1.8 degree,nema 23,size 57x57x76mm,rated current/phase 4.2A,holding torque 2Nm (282oz.in),double shaft, 8 wires

Price$35.00

Number 298 In Stock

Price Break
Qty Price($)
1-10 35.00
11-20 27.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 23HS8804-02YEL

Phase:2

Step Angle: 1.8 deg

Frame Size: 57 x 57mm

Body Length: 76mm

Shaft Diameter: Φ6.35mm

Shaft Length: 21mm

Lead Length: 300mm

Weight: 1.2kg



Holding Torque

(2 phases on)

N.m±10%

Rated

Current/Phase

A

Phase Resistance

Ohms±10%



Phase Inductance

mH ± 20%

Bipolar(Parallel)

2.0

4.2

0.6

1.8

Bipolar(Series)

2.0

2.1

2.4

7.2

Unipolar

1.4

3.0

1.2

1.8
