35H20HM0404A

35H20HM0404A

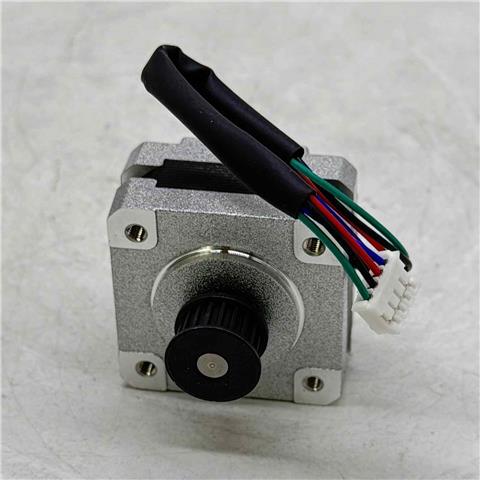

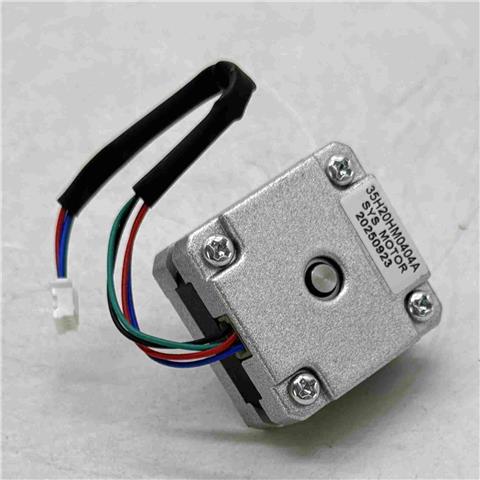

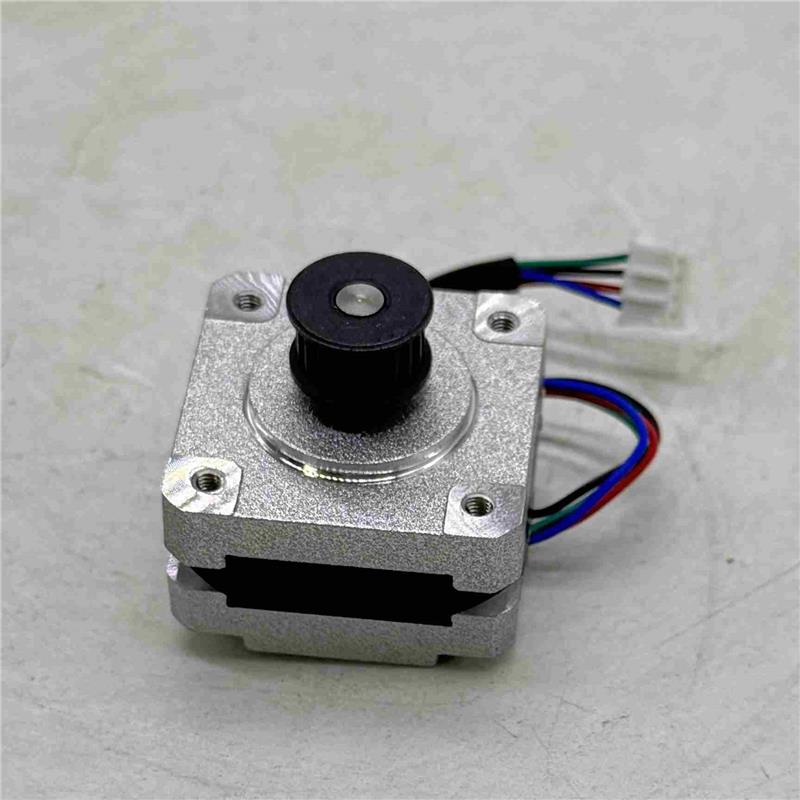

Nema 14 ,0.9degee ,size 35x35x20mm,0.4A ,8Ncm (11.3oz.in) 6.4V , 4 wires with connector PH-4,with pulley

Price$12.20

Number 1000 In Stock

Price Break
Qty Price($)
1-3 12.20
4-10 11.30
11-20 10.80
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 35H20HM0404A

Phase:2

Step Angle: 0.9 deg

Holding Torque: 8Ncm(11.3oz.in)

Rated Current/phase: 0.4A

Voltage: 6.4V

Inductance: 21mH ± 20%(1KHz)

Phase Resistance: 16ohms



Frame Size: 35 x 35mm

Body Length: 20mm

Shaft Diameter: Φ5mm

Shaft Length: 13mm with pulley

Number of Leads: 4

Lead Length: 130mm

connector PH-4,
