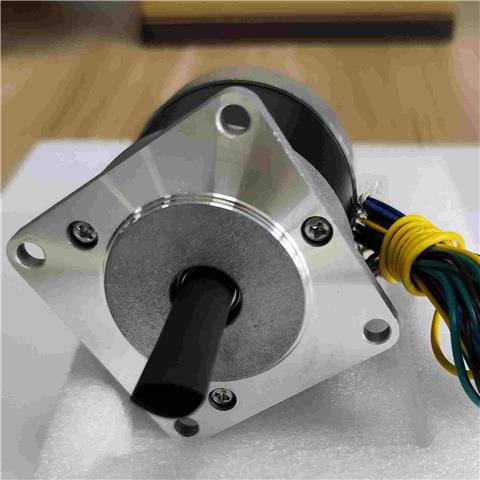

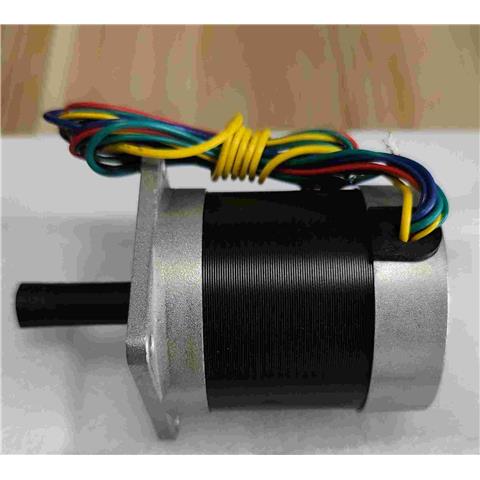

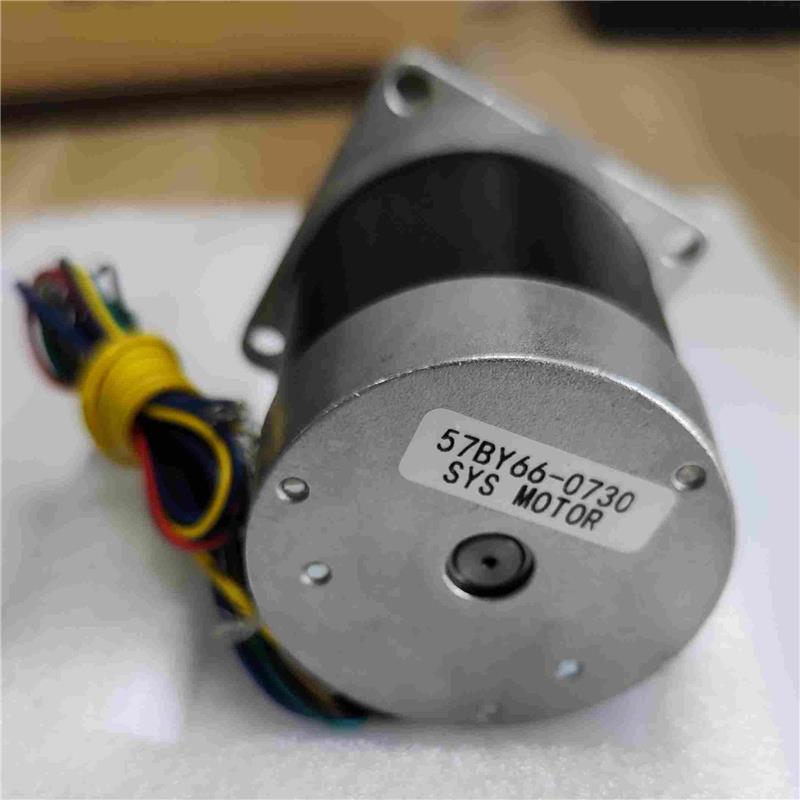

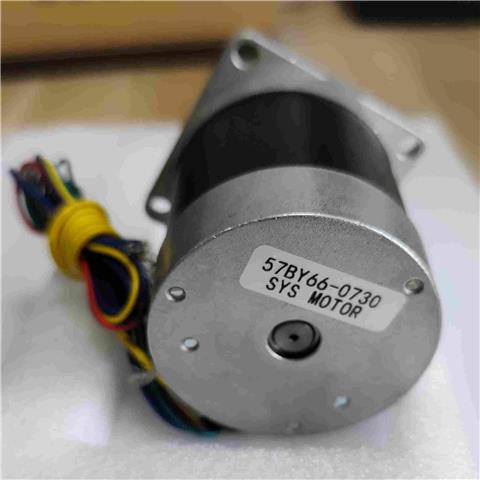

57BY66-0730 brushless DC motor

57BY66-0730 brushless DC motor

size 57x57x66.5mm,voltage DC 24V,rated speed 3000rpm,rated torque 0.22Nm,output power 69W

Price$32.00

Number 1000 In Stock

Price Break
Qty Price($)
1-5 32.00
6-10 31.00
11-20 30.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 57BY66-0730

Voltage: DC 24V

Output Power:69W

Rated Speed:3000rpm

Rated Torque: 0.22Nm(31.2oz.in)

Phase Resistance: 0.64ohms

Inductance:     mH ± 20%(1KHz)

Number of Poles:4


Frame Size: 57 x 57mm,round shape

Body Length: 66.5mm

Shaft Diameter: Φ8mm

Shaft Length: 22mm

Net Weight:0.7Kg
