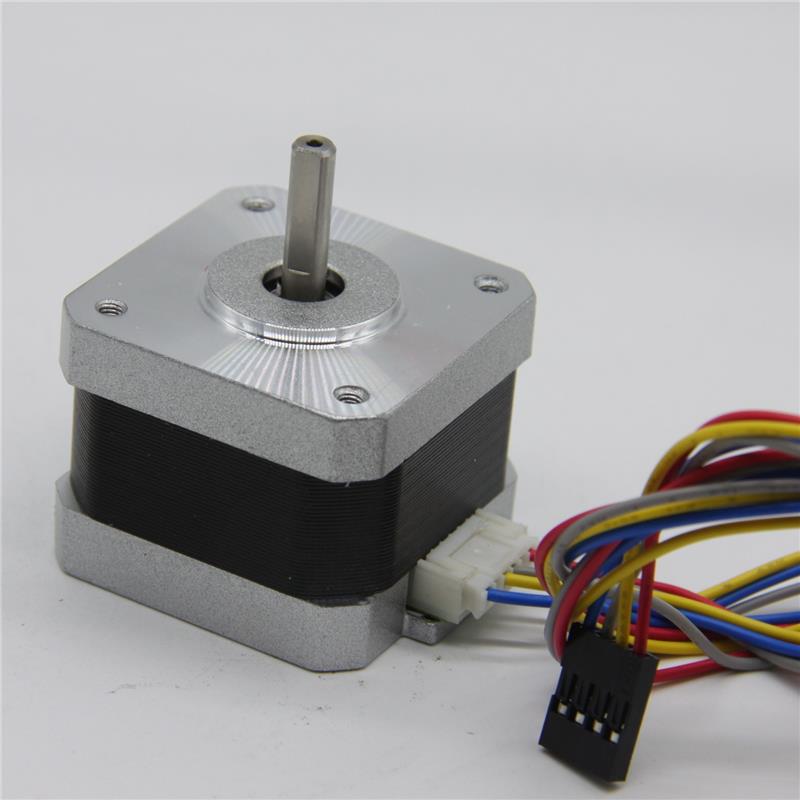

17HS3404L23P1-X1

17HS3404L23P1-X1

2 phase,1.8 degree,nema 17,size 42x42x34mm,rated current/phase 0.4A,holding torque 28Ncm(40oz.in),single shaft with flat, 4 wires,pin connector:JST PH-6A

Price$12.50

Number 1000 In Stock

Price Break
Qty Price($)
1-5 12.50
6-10 9.50
11-20 8.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 17HS3404L23P1-X1

Phase:2

Step Angle: 1.8 deg

Holding Torque: 28Ncm(40oz.in)

Rated Current/phase: 0.4A

Voltage: 12V

Inductance: 35mH ± 20%(1KHz)

Phase Resistance: 30ohms



Frame Size: 42 x 42mm

Body Length: 34mm

Shaft Diameter: Φ5mm

Shaft Length: 23mm

D-Cut Length:19mm

Number of Leads: 4

Pin connector:JST PH-6A

Lead Length: 2000mm
