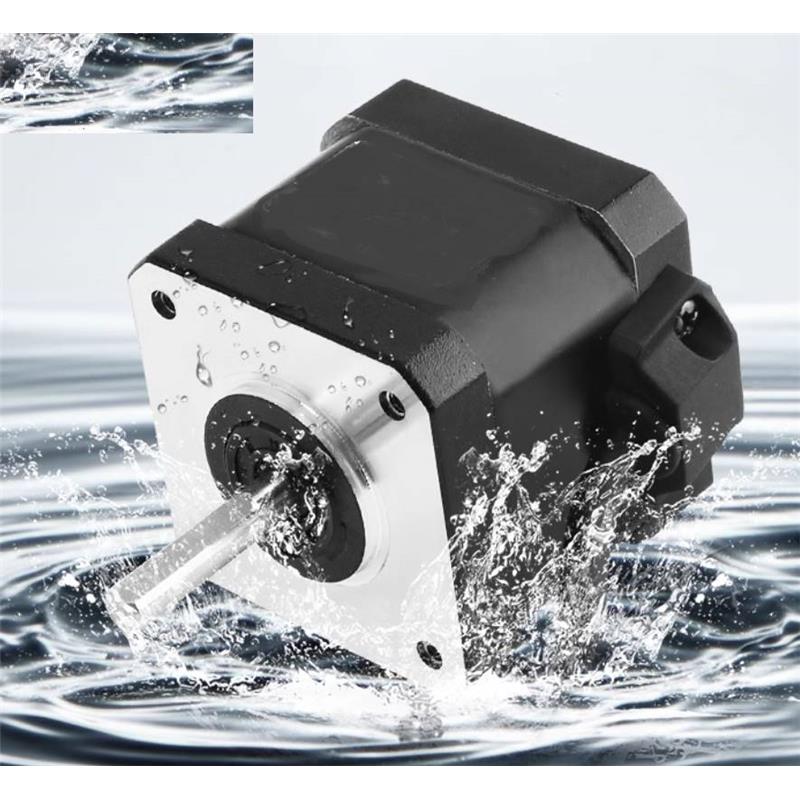

17H34-134AIP68

17H34-134AIP68

2 phase,1.8 degree,nema 17,size 42x42x34mm,rated current/phase 1.3A,holding torque 28Ncm,single shaft with flat, 4 wires

Price$21.00

Number 100 In Stock

Price Break
Qty Price($)
1-9 21.00
Contact us for qty 10 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 17H34-134AIP68

Phase:2

Step Angle: 1.8 deg

Holding Torque: 28Ncm

Rated Current/phase: 1.3A

Voltage: 2.86V

Inductance: 2.9mH ± 20%(1KHz)

Phase Resistance: 2.2hms

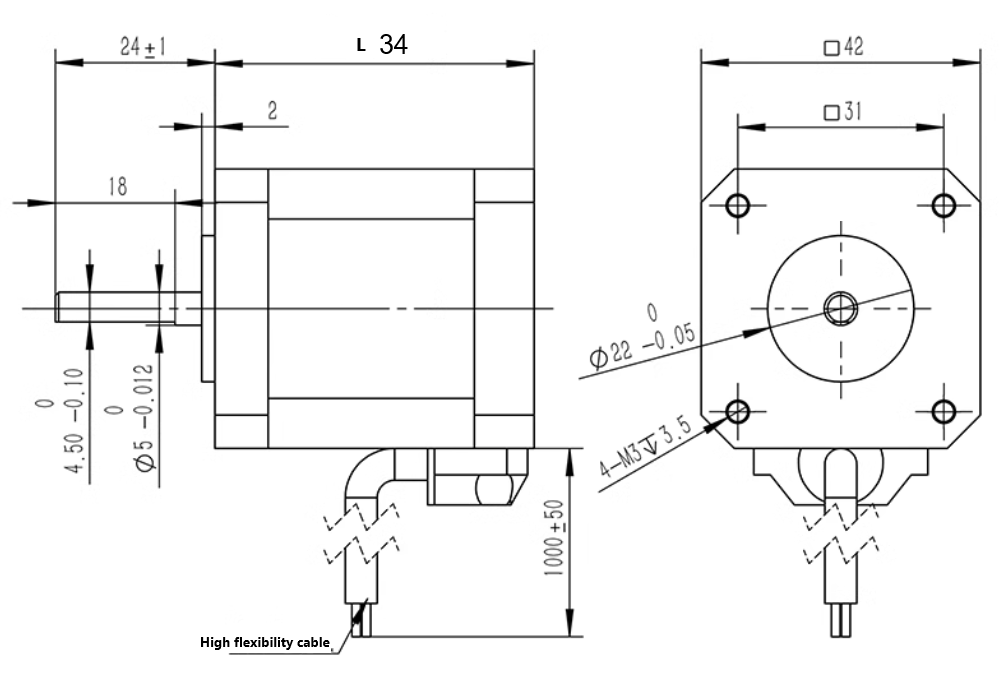

Frame Size: 42 x 42mm

Body Length: 34mm

Shaft Diameter: Φ5mm

Shaft Length: 24mm

D-Cut Length:18mm

Number of Leads: 4

Lead Length: 1000mm
