34HS6828

34HS6828

2 phase,1.8 degree,nema 34,size 86x86x68mm,holding torque 3.10Nm(439ozin),rated current(bipolar) 3.92A/phase,single shaft(dia 14mm) with 2-flat, 8 wires

Price$36.00

Number 1000 In Stock

Price Break
Qty Price($)
1-5 36.00
6-10 34.00
11-20 33.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 34HS6828

Phase:2

Step Angle: 1.8 deg

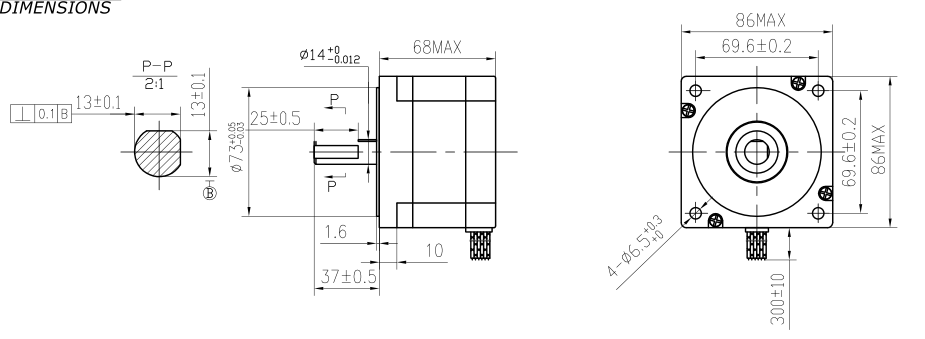

Frame Size: 86 x 86mm

Body Length: 68mm

Shaft Diameter: Φ14mm

Shaft Length: 37mm

2 D-cut Length:25mm

Lead Length: 300mm




Unipolar

Bipolar

(Series)

Bipolar

(Parallel)

Holding Torque

Nm

2.2

3.1

3.1

Rated

Current/Phase

A

2.8

1.96

3.92

Phase Resistance

Ohms±10%

1.4

2.8

0.7

Phase Inductance

mH ± 20%

3.9

15.6

3.9
