sysmotor> Home> 11HS5406

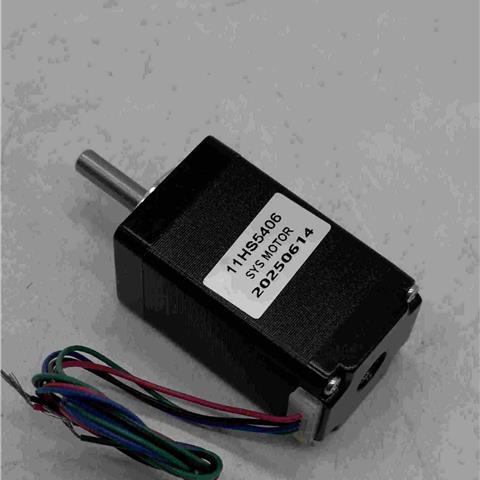

11HS5406

11HS5406

2 phase,1.8 degree,nema 11,size 28x28x50mm,rated current/phase 0.67A,holding torque 12Ncm (17oz.in) single shaft , 4 wires

Price$25.00

Number 1000 In Stock

Price Break
Qty Price($)
1-5 25.00
6-10 18.00
11-20 15.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 11HY5406

Phase:2

Step Angle: 1.8 deg

Holding Torque:12Ncm (17oz.in)

Rated Current/phase: 0.67A

Voltage: 6.2V

Inductance: 7.2mH ± 20%(1KHz)

Phase Resistance: 9.2ohms

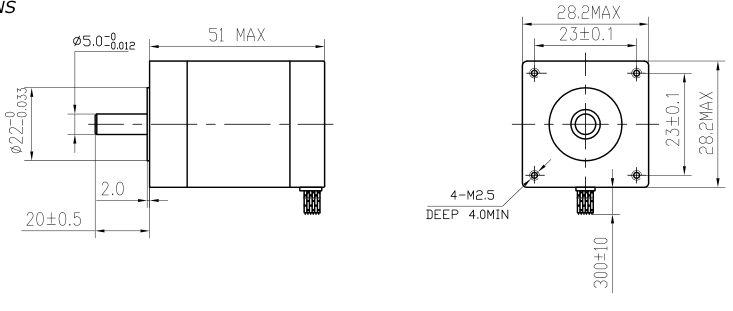

Frame Size: 28 x 28mm

Body Length: 51mm

Shaft Diameter: Φ5mm

Shaft Length: 20mm

Number of Leads: 4

Lead Length: 300mm
