sysmotor> Home> 8HS3406

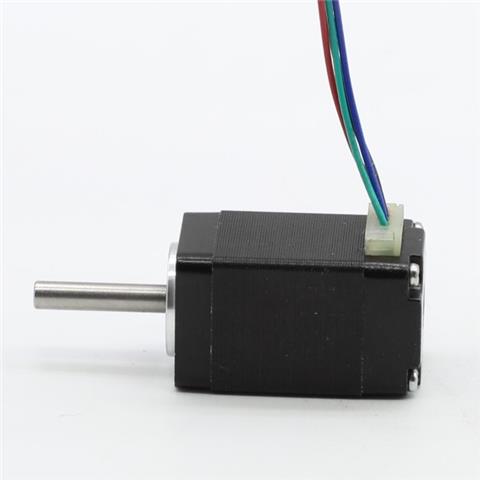

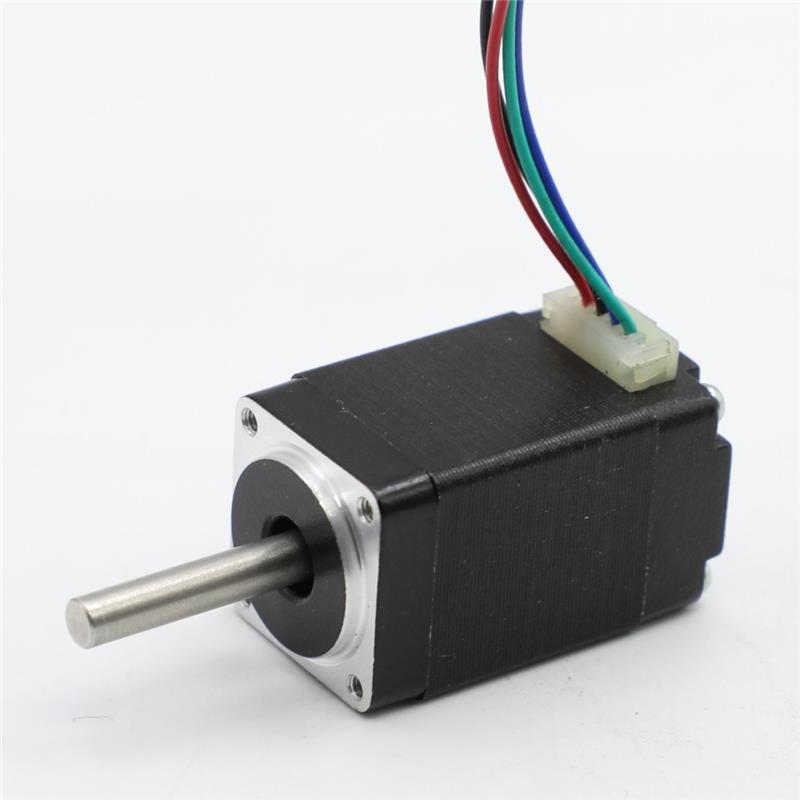

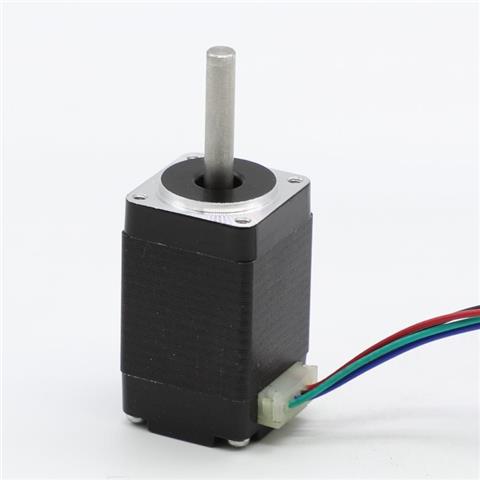

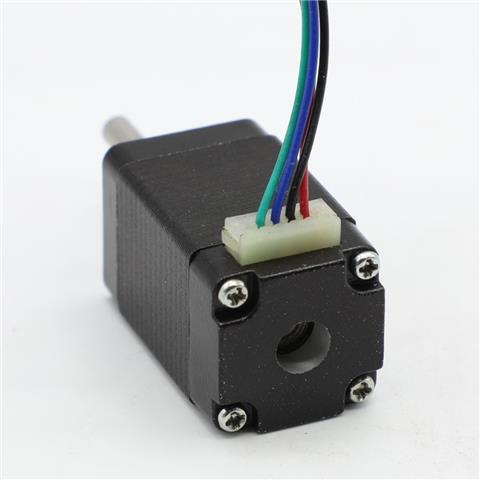

8HS3406

8HS3406

2 phase,1.8 degree,nema 8,size 20x20x33mm, rated current/phase 0.6A, holding torque 1.8Ncm (2.6oz.in),single shaft,4 wires

Price$14.40

Number 0 In Stock

Price Break
Qty Price($)
1-3 14.40
4-10 13.80
11-20 13.20
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 8HS3406

Phase:2

Step Angle: 1.8 deg

Holding Torque: 1.8Ncm(2.6oz.in)

Rated Current/phase: 0.6A

Voltage: 2.7V

Inductance: 1.7mH ± 20%(1KHz)

Phase Resistance: 4.5ohms

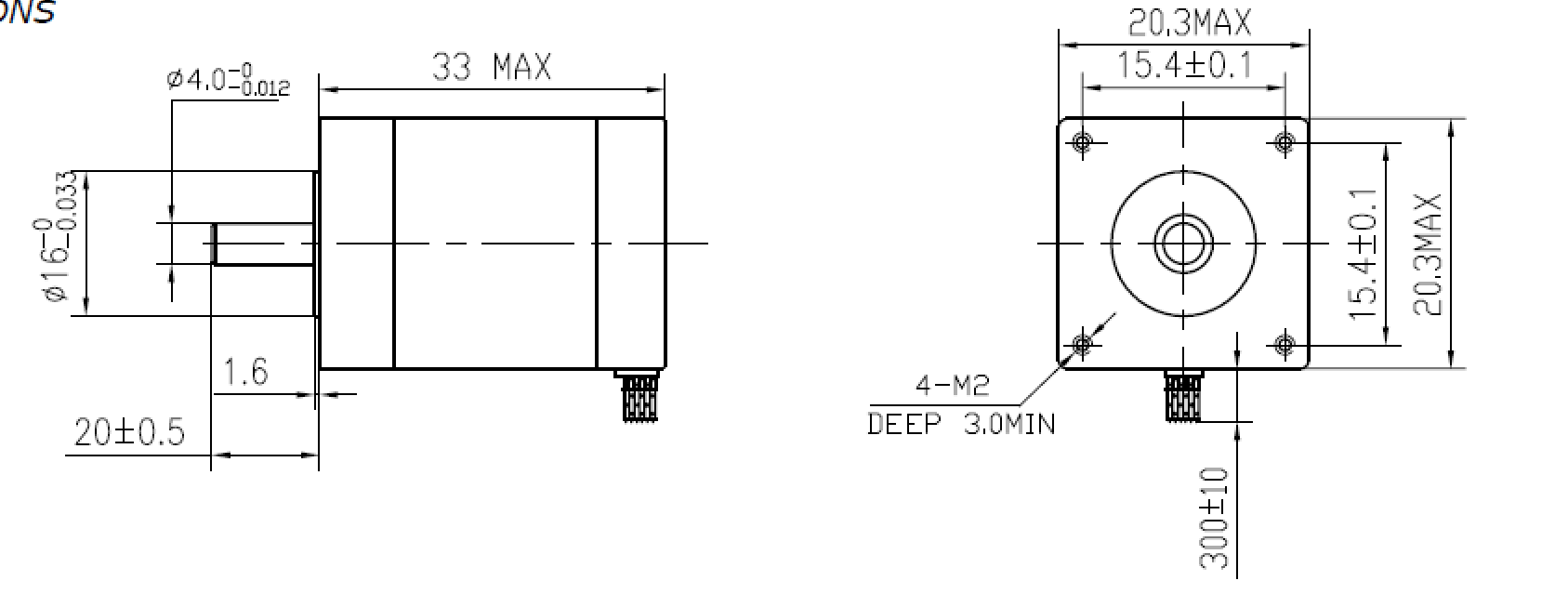

Frame Size: 20 x 20mm

Body Length: 33mm

Shaft Diameter: Φ4mm

Shaft Length: 20mm

Lead Length: 300mm


Tags: nema 8, 8HS3406, bipolar, 1.8deg, 0.6A,2.7V,1.8Ncm, (2.6oz.in),20x20x33mm, 4 ,wires,
