24HS7430D8L31.5J2-16

24HS7430D8L31.5J2-16

2 phase,1.8 degree,nema 24,size 60x60x76mm,rated current/phase 3.0A,holding torque 2.2Nm(316ozin),single shaft with keyway, 4 wires

Price$23.00

Number 1000 In Stock

Price Break
Qty Price($)
1-10 23.00
11-20 22.50
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 24HS7430D8L31.5J2-16

Phase:2

Step Angle: 1.8 deg

Holding Torque: 2.2Nm(316oz.in)

Rated Current/phase: 3.0A

Voltage: 3.0V

Inductance: 3.5mH ± 20%(1KHz)

Phase Resistance: 1.0ohms

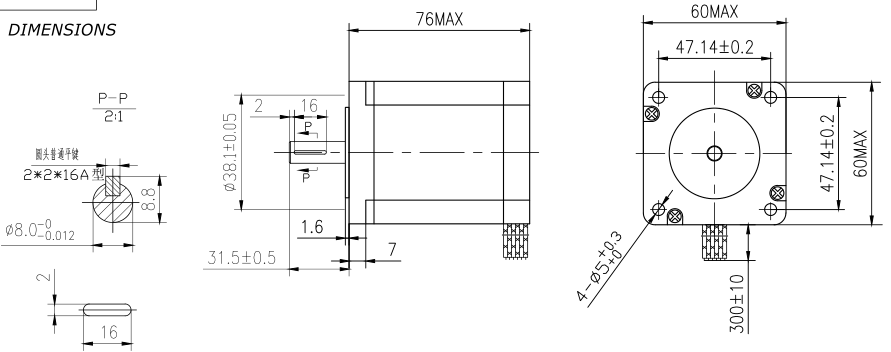

Frame Size: 60 x 60mm

Body Length: 76mm

Shaft Diameter: Φ8mm

Shaft Length: 31.5mm

Key-Way Length:16mm

Number of Leads: 4

Lead Length: 300mm
